220VAC Input Solar System For Telecom Tower
• Minimum Order Quantity : 2PCS 48VDC Solar Power System
• Price : 500~1000USD
• Packaging Details : Standard Exported Cartons and Pallets for Solar DC Power System
• Delivery Time : Within 15-30days after receiving your 30% TT deposit
• Payment Terms : L/C, T/T, Western Union
• Supply Ability : 5000PCS Solar DC Power System Per Month
• Place of Origin : China
• Brand Name : SOROTEC
• Certification : CE,ROHS,RSO9000
• Model Number : SHW48500 Solar DC Power System
• Model : 48VDC Solar DC Power System
• Application : Power Plant
• Off-Grid Solar System : Yes
• Maximum Input Current : 62A
• Technology : Advanced MPPT Technology
• Altitude : 0~3000M
• Humiduty : 0~100%RH
• Installation : Outdoor
• High Light : solar system for telecom tower, telecom battery backup systems
• Adopt advanced MCU microprocessor control technology
• Advanced MPPT Technology.High converting efficiency higher than 97% for
minimizing energy loss.
• Reversed current protection at night.over voltage and reverse polarity protection
• Capable of selection different charging mode fo various types of batteries
• Protection degree:IP55
• Industy-leading power density compact size and high reliability
• Doorframe designed with waterproof structure, posted on the seal and equipped with wateerproof lock in the door double insulation design
• Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material,surfce coating anti-UV power
• Suitable for outdoor installation
• With remote monitoring system operation
• MODEL SHW48500 Series : Solar DC Power System
• Nominal Voltage : 48VDC
• Convertion : AC to DC

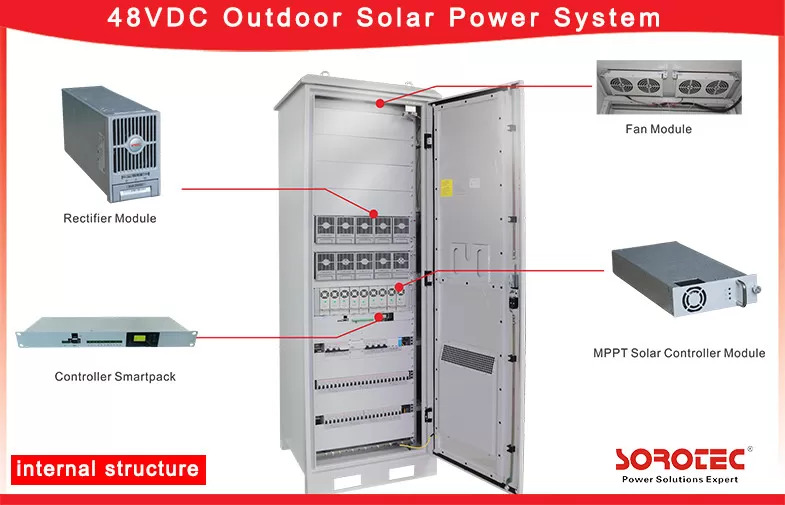

• Structure : MPPT Solar Charge Controller,DC Power Module
• Input Voltage : 220VAC
• Output Current : 0-50A
• Accessories : Solar Cabinet,Solar Panel.etc
• Application : Telecom base station.Telecom tower,Traffic lights,Solar Power Plants .etc
• with sun protection, heat insulation, roof ventilation
• with waterproof and the filtration dust inlet, the cabinet front door shutters.withwaterproof design
System Details
| SHW48500 Solar System | Rectifier Module(1-10) MPPT Solar Charge Controller(1-10) |
| MPPT Range @Operating Voltage | 60 ~150VDC |
| Maximum PV Array Power | 3000W |
| Maximum Input Current | 62A |
| Nominal Battery Voltage | 42-58VDC |
| Maximum Charge Current | 50A(max:61A) |
| Maximum Efficiency | 98% |
| Charging Method | Three stages: bulk, absorption and floating |
| Overload Protection | > 110% : audible alarm |
| Overcharge Protection | Yes |
| Polarity Reversal Protection @Solar Cell & Battery | Yes |
| LCD Panel | LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions |
| LED Display | Three indicators for solar, charging, and load status |
| Rated input voltage | 220V |
| AC input Voltage range AC | 90-290V |
| input Frequency range | 45-65HZ |
| Power factor | ≥0.99 |
| Efficiency | >92% |
| Rated output voltage | 48V |
| Rated output current | 0-50A |
| Voltage range | 42-58V |
| Input Power | 1KW/2KW |
| Input Voltage | 150-300VAC |
| Output Voltage | 48VDC |
| Ouput Current | 30A/50A |
| Humidity | 0 ~ 100% RH (No condensing) |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 75°C |
| Altitude | 0 ~ 3000 m |
