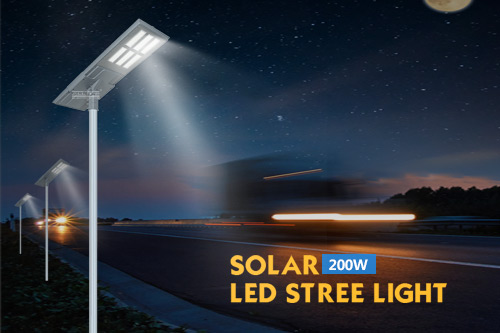

ALLTOP Outdoor IP65 Integrated LED Solar Street Light
• Utilize ligh effiency LED, with integrated optical lens. PWM adjustment, constant current output.
• PIR motion sensor: enter energy-saving mode when nobody to prolong backup days. With
• RED pathway indicator, for warning effect and decoration at night.
• Solar Panel From 180W with High Efficiency(Monocrystalline)
• Excellent power performance even in low-light environments(morning, dusk, rainy days).
• Certified to withstand high wind load(2,400Pa) and snow load(5,400Pa).
• Good resistance to salt-spray corrosion and ammonia corrosion. Full range of solar module are certified by TUV.CE,ISO9001 Certificate
• Green and environmental protection: no toxic heavy metal substances such as lead, mercury and cadmium are produced.
• Lithium-ion battery can be charged and discharged at any time, unlike nickel-metal hydride, nickel-tin battery, must wait until
• The environmental temperature difference changes adaptability: can be used in the environment of -20 ° C ~ 60 ° C,
• Production basically does not consume water, which is very beneficial to countries where water sources are scarce.
• Lithium battery voltage platform is high: the average voltage of the single battery is 3.2V or 3.7V, which is convenient for
• The service life is relatively long: the service life can reach more than 6 years
System Details
| Item No | 0310F200-01 |
| Power | 200W |
| LED Lamp | 5050 LED 288PCS 3000K-6000K |
| Lamp Size | 1550*534*167mm |
| Solar Panel | 16.5V 180W, Mono-Crystalline |
| Battery Type | LiFePO4 12.8V 108AH |
| Charging time | 6-8 hours |
| Discharging time | 30-36 hours |
| LED | 160lm/w |
| Material | Die-Casting Aluminium |
| Install Height | 8-10m |
| Warranty | 3 years |
