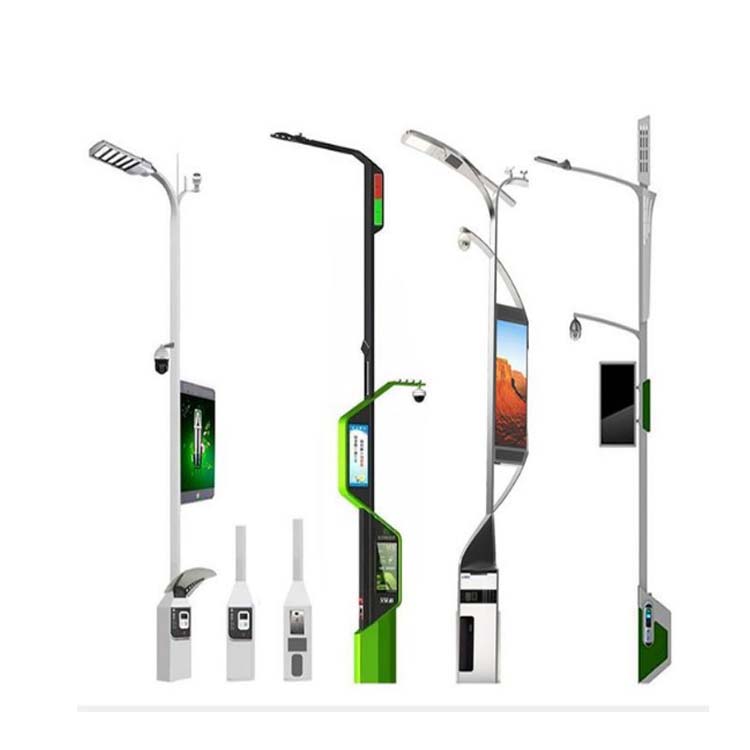

Smart Pole with LED Screen Display, Smart CCTV, WiFi Transmitter
• Place of Origin : Anhui, China
• Brand Name: Fitbright
• Material: Aluminum
• Type: Round
• Application: Square
• Parts: Flag /Solar /WIFI
• Height: 5~12m
• Thickness : 3mm-6mm
• CRI (Ra>): 80
• Power Supply : 120-240V 50/60Hz
• IP Rating: IP65
• Input Voltage(V) : 220
• Dimming: Motion Sensor
• Control System: Custom made
• Color: White/brown/other
• Supply Ability : 1000 Piece/Pieces per Month
• Packaging Details – Carton and wooden box
• Port – Shanghai
• Lead Time:
System Details
| Quantity(Pieces) | 1 – 100 |
| Est. Time(days) | 15 |
| Devices | parameter |
| Pole | 3-12meter |
| LED lamp | 30-180W |
| Communication way | Zigbee /Lorawan/NB-lot |
| Camera | 3-inch hemisphere, 300W pixels |
| Software | Street light control system and custom for other all devices |
| Atmospheric Sensor | Eight in one: Humidity, Air Pressure, Wind Speed, Wind Direction, Temperature, PM2.5, PM10 |
| WiFi-Ap | 2.4GHz/5G 300Mbps Cover 100 meters and connect to 100 points Support 2 N-port antenna interfaces |
| WiFi-Ac | Centralized control of up to 128 APs architecture to achieve high-speed forwarding of multiple services. Support IEEE802.11a/b/g and IEEE802.11n standards Implement centralized access and centralized deployment of APs |
| One key calls the terminal device | Hd camera, active real-time surveillance,720P CMOS camera Full duplex voice intercom, audio coding: g.711, G713, PCM 3 m distance intercom, speaker: 8 Ω 3 w Dynamic noise reduction, clear sound pickup, SNR >85db Outdoor rainproof, IP52. RJ45 interface, support TCP/IP, DHCP |
| Voice box | Rated input Voltage:110V Sensitivity:85dB Frequency:70Hz~15Khz Network Interface:RJ45/10M/100M Protocol:TCP/IP/UDP Audio format:MP3/MP2 Speaker unit:3”*3 Dimension:437*107*73mm |
| Microphone | For network call microphone input |
| Charging Station | Input voltage: AC220V plus or minus 10%;Charging mode: single charge Total power: 7kW; Whole machine performance: the efficiency is greater than 99% Start mode: swipe card, APP scan code: protection level is greater than or equal to IP54 |
| LED full-color display | Frame frequency: ≥60hz/s Refresh frequency:≥3500hz/s Brightness:≥6500cd/sq.m Storage temperature: -40°C~+85°C Operated temperature:-20°C~+55°C Malfunction dot rate:<0.0001 Life:>10,000hours |
